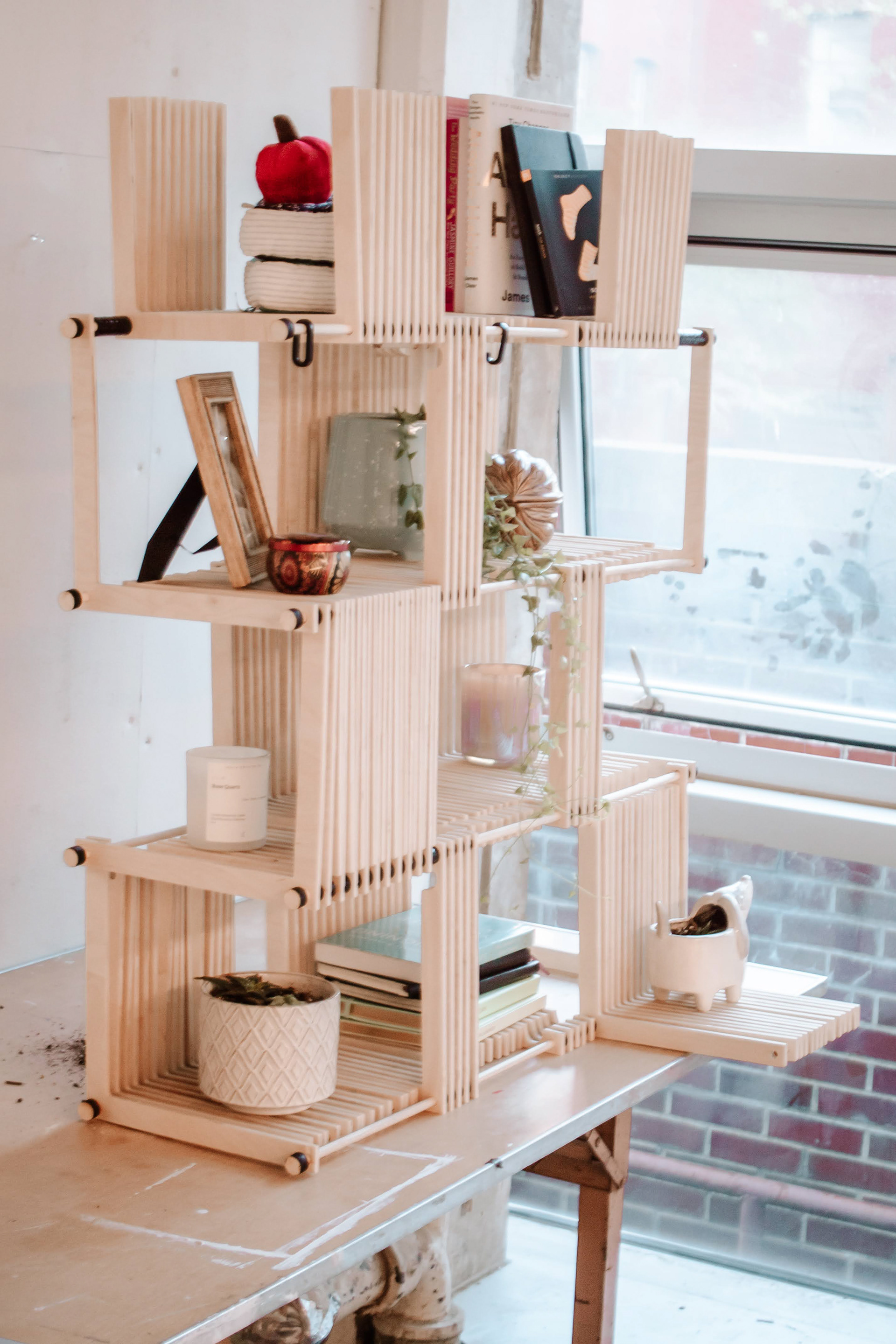

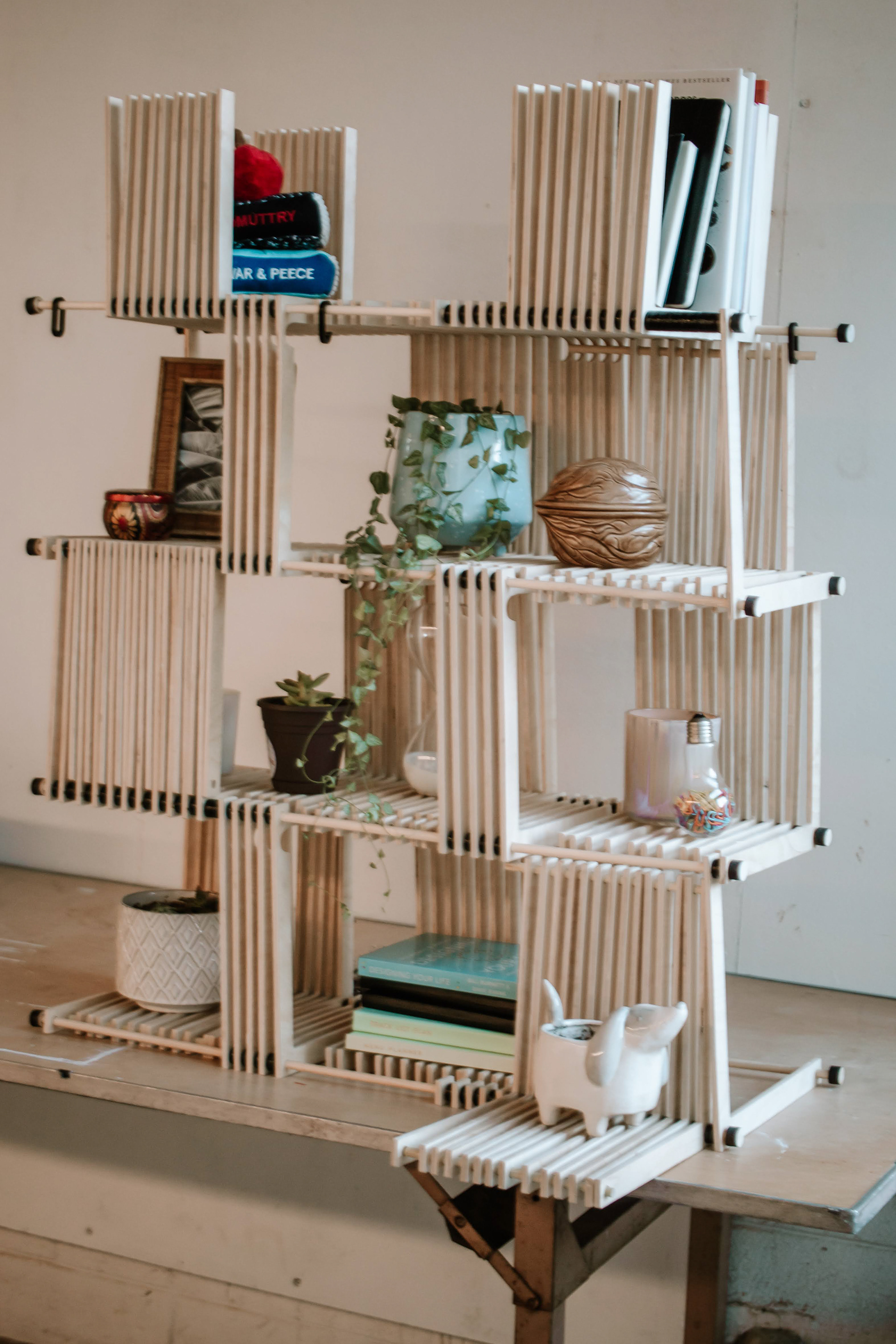

The intentions of the project was to create a modular, stand-alone shelving unit that also divides a space. The three tiered shelf utilizes rotatable sections that can be moved by the user to create more positive or negative space depending on the item to store. Circe will be placed indoors wherever the user wants to keep their belongings on display.
The unit is made from Baltic birch, black acrylic, and minimal glue. The Baltic birch was cut into slatted shapes that are aligned to functionally work together. The spacing allows for each movable section to pass the tier above/below, as well as provide structural support to each section of the shelf.
Early Prototyping:
After finding images that inspired us, we decided to use the laser cutter as well as scrap acrylic to start our material and form exploration process. During this process we explored a backbone like structure with a repetitive form using both acrylic and chipboard.

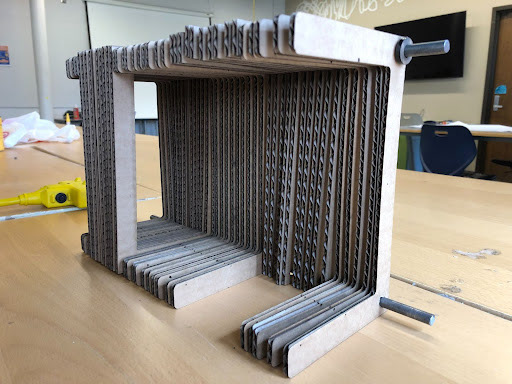

Once deciding upon a shelf like form that we were excited about we began our prototyping process. In our early prototypes we explored varying shapes as well as how different structural forms could support a multi tiered shelf. These early prototypes were created at varying scales using wooden and metal dowels, cardboard, and acrylic washers.

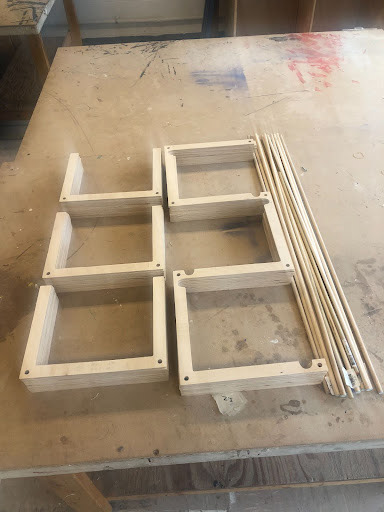

After creating the C part, L part, and S support files on Fusion 360, we sent the files to the CNC to be cut. Several hundred acrylic washers were cut using an Illustrator file. Pieces were cut from the board, sanded and assembled in order of each planned section. In the case of further development, different quantities of pieces could result in a variety of final configurations.
